Zhejiang Xinna Medical Device Technology Co., Ltd.

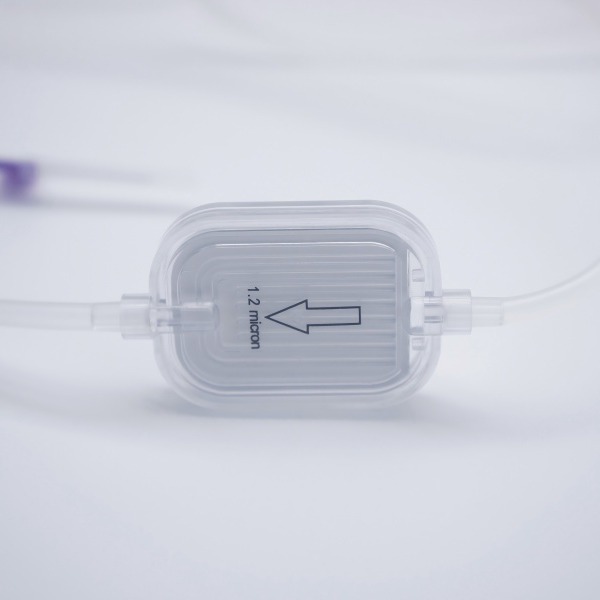

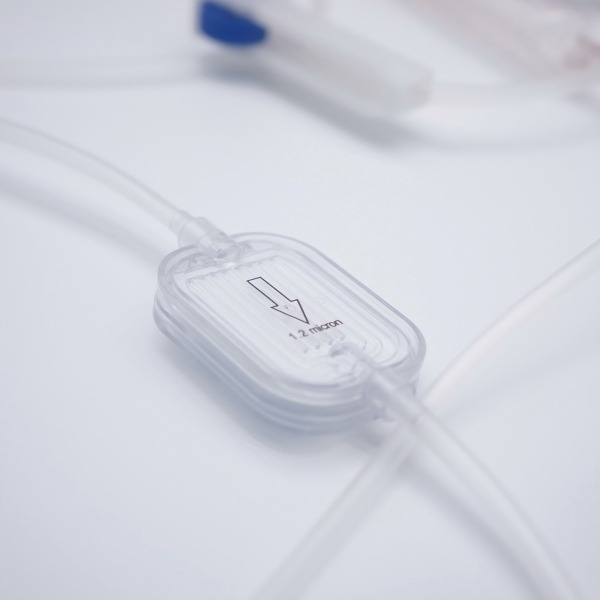

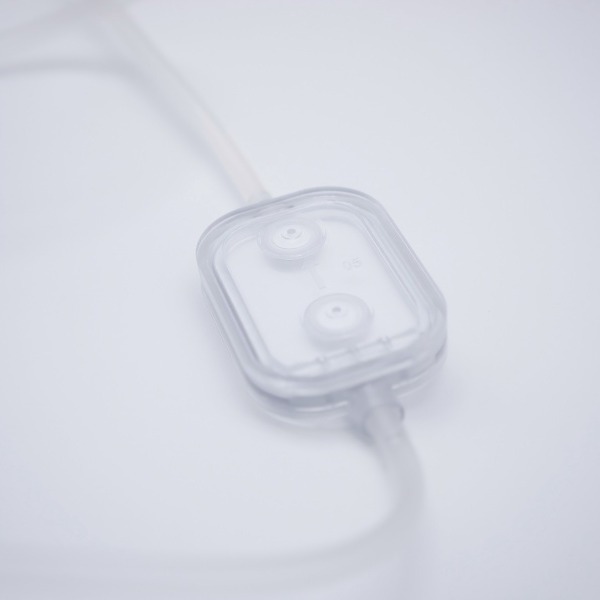

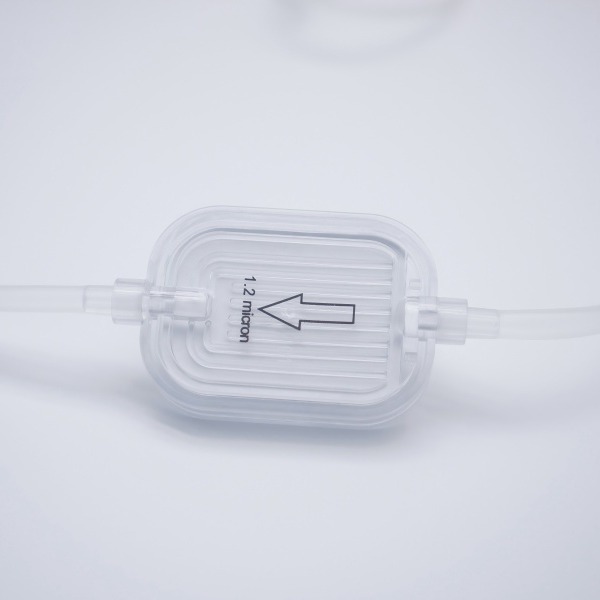

1.2 micron IV Filter for infusion therapy

제품 상세 정보:
원래 장소: 중국
브랜드 이름: OEM avaliable
인증: YY 0286.1 GB 8368-2018 ISO9001
모델 번호: F33
결제 및 배송 조건:
최소 주문 수량: 100,000 PC
가격: $0.15-$0.22 per piece
포장 세부 사항: 상표를 가진 팩 당 750pcs, 판지 당 4packs 또는 주문을 받아서 만드는
배달 시간: 30일
지불 조건: L/C, T/T
  • 상세 정보
  • 제품 설명

상세 정보

제품 이름: 일회용 1.2 미크론 IV 필터 필터 하우징: ABS
기공 크기: 1.2 um 매체 소재: PES, 통풍구를위한 PTFE
정지 액체 높이: ≥1.5m 어셈블리 모드: 열 용해 또는 초음파 용접
소독: 비균성/EOS 종류: F, 일회용
장점: 자동 액체 정지 색상: 자연스럽고 가벼운 방해가 가능합니다
호환성: 표준 IV 튜브와 호환됩니다. 보증: 3년
적용: 수액 셋트 원산지: 중국
강조하다:

1.2 micron

,

iv filter 1.2μm

,

infusion set

제품 설명

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.
